Reverse gearbox

$225.00
Suitable for 3/4" or 1" shaft

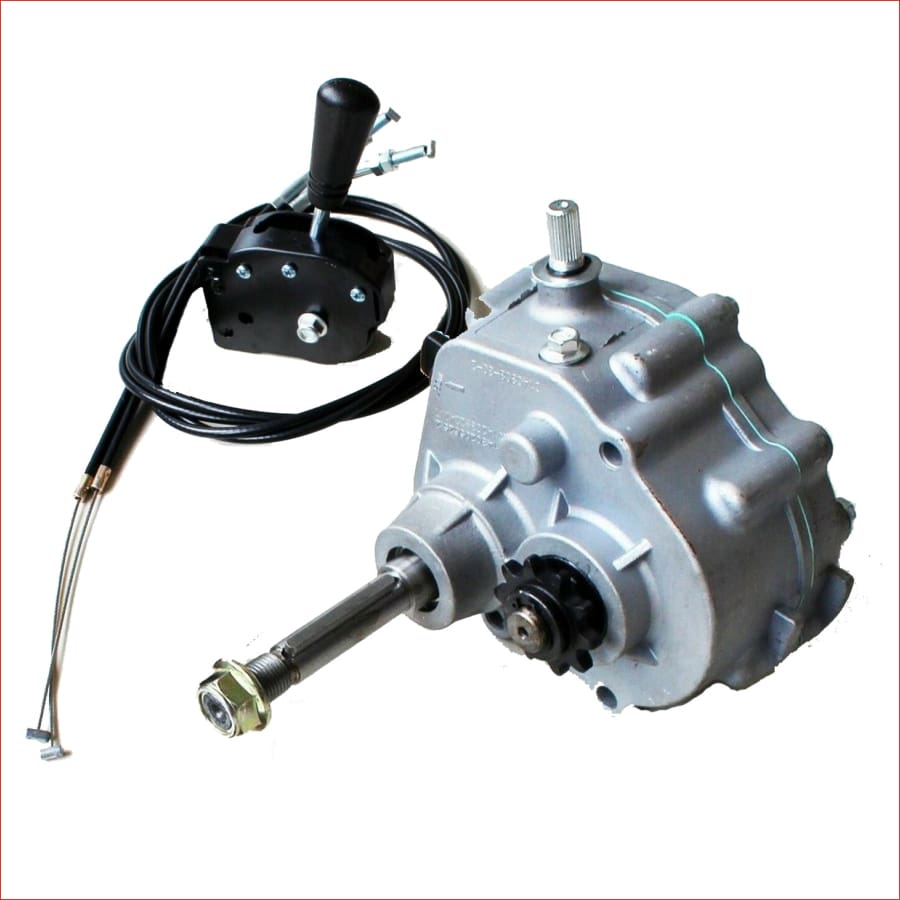

Forward Reverse gearbox is for go-karts, utility vehicles and other applications from 2HP to 13HP. It's lightweight, rugged gearbox that allows operator the selection of three gears: forward, reverse and neutral.
Specifications:
  • 2HP - 13HP - 2300RPM
  • Shaft Size: 5/8" (15.88mm) with 3/16" (4.76mm) keyway
  • Suitable for 40/41/420 chains
  • 10T Sprocket
  • Forward Ratio: 1:1.3
  • Reverse Ratio: 1:2.6

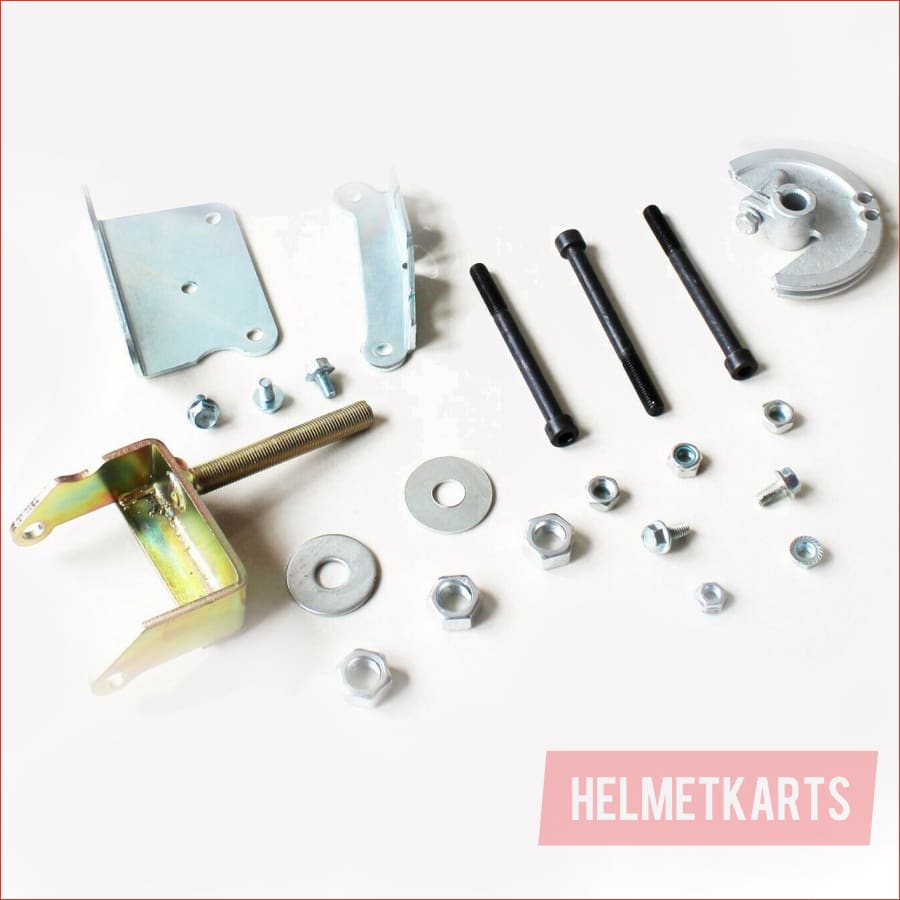

Kit includes:
  • Forward / Reverse Gearbox
  • Mounting Plates
  • Shifter Assembly
  • Shifter Disc
  • Shifter cable (x2)
  • #40/41/420 Sprocket included
