Suitable for 3/4" or 1" shaft

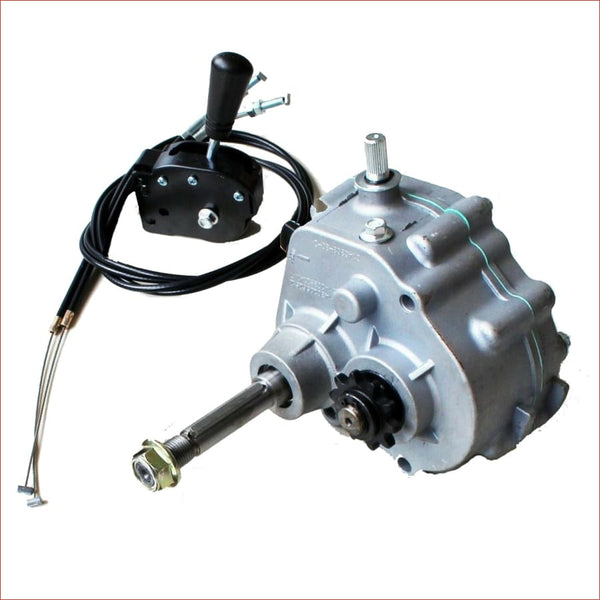

Forward Reverse gearbox is for go-karts, utility vehicles and other applications from 2HP to 13HP. It's lightweight, rugged gearbox that allows operator the selection of three gears: forward, reverse and neutral.

Specifications:

2HP - 13HP - 2300RPM
Shaft Size: 5/8" (15.88mm) with 3/16" (4.76mm) keyway
Suitable for 40/41/420 chains
10T Sprocket
Forward Ratio: 1:1.3
Reverse Ratio: 1:2.6

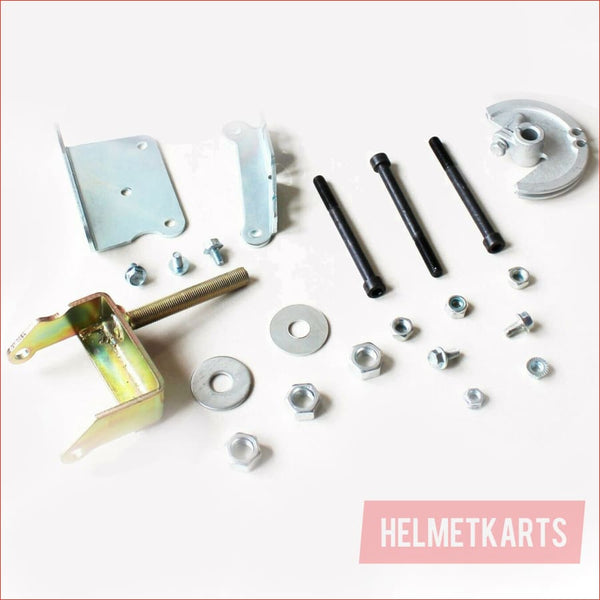

Kit includes:

Forward / Reverse Gearbox
Mounting Plates
Shifter Assembly
Shifter Disc
Shifter cable (x2)
#40/41/420 Sprocket included
