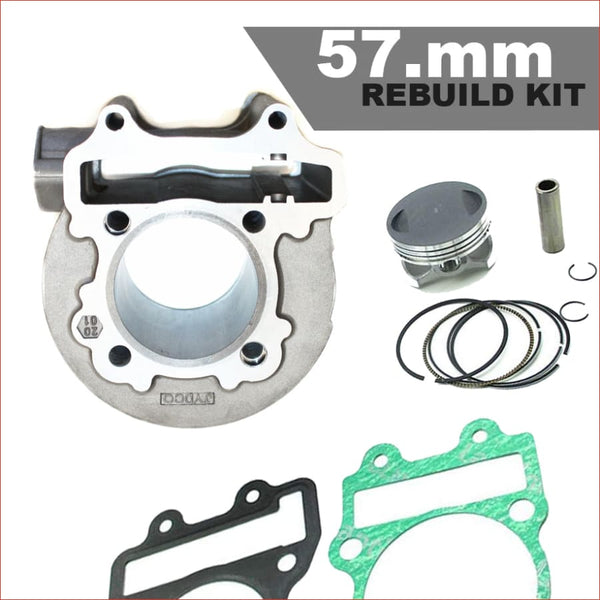

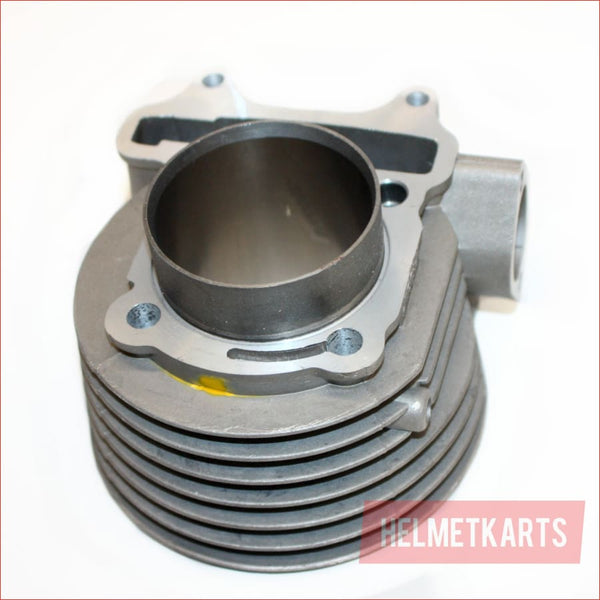

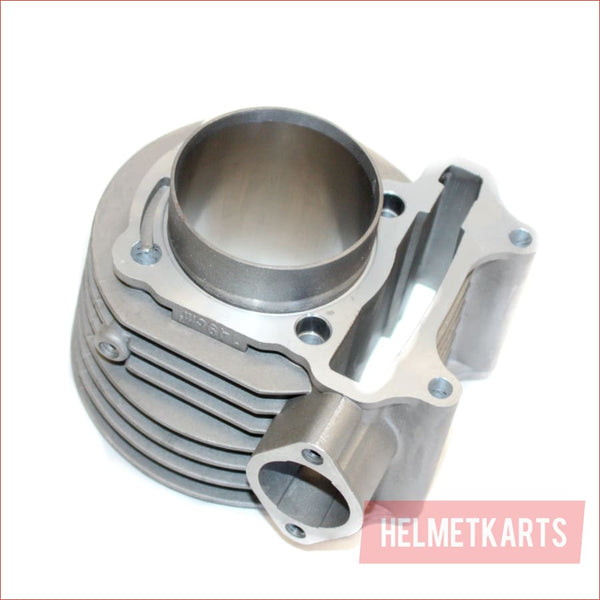

57mm Cylinder Piston Rebuild Kit - 150cc GY6

$84.00

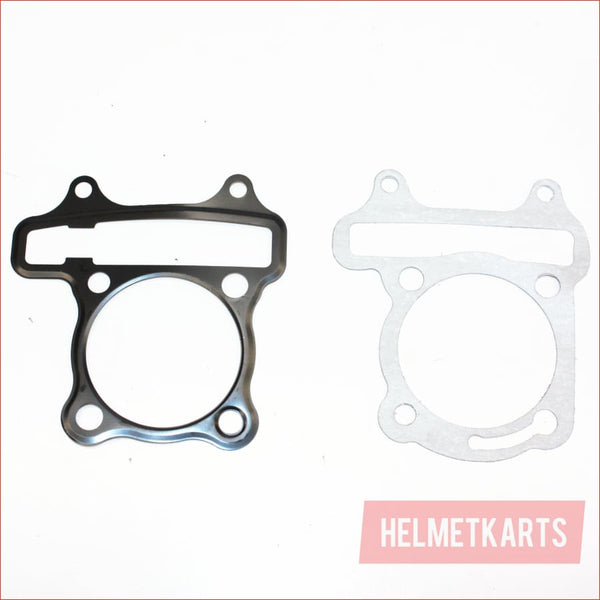

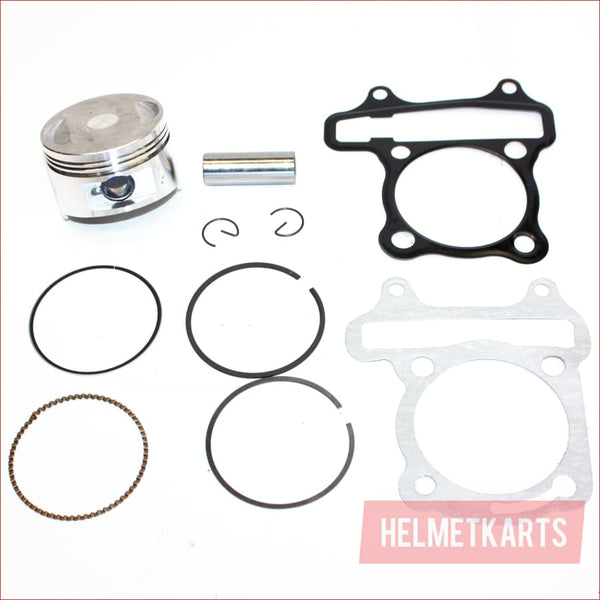

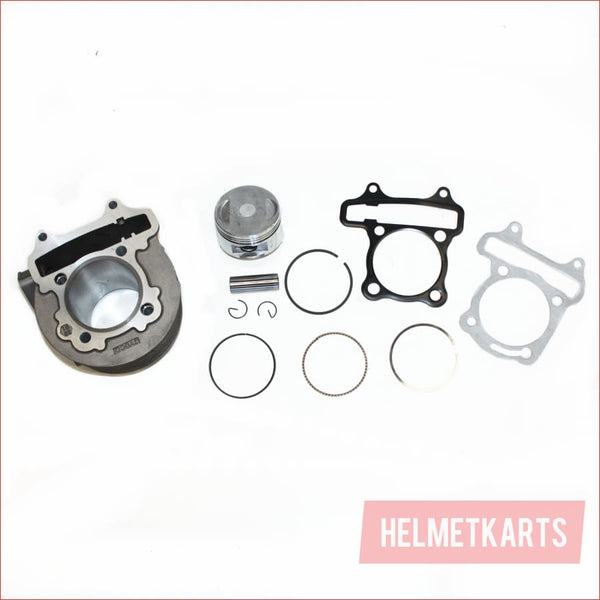

Engine Rebuild Kit (Cylinder / Piston / Gaskets )

Application: 150cc GY6 (ATV Quad, Buggy)

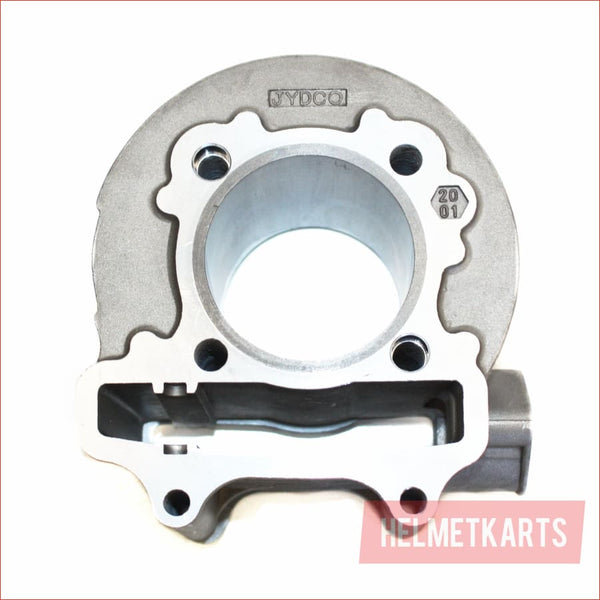

DIAMETER OF BORE approx 57.04mm
DISTANCE BETWEEN HEAD BOLTS

(CENTRE HOLE TO CENTRE HOLE) CLOCKWISE EACH TWO BOLTS

 approx 53.42mm / 53.65mm / 53.14mm / 53.30mm

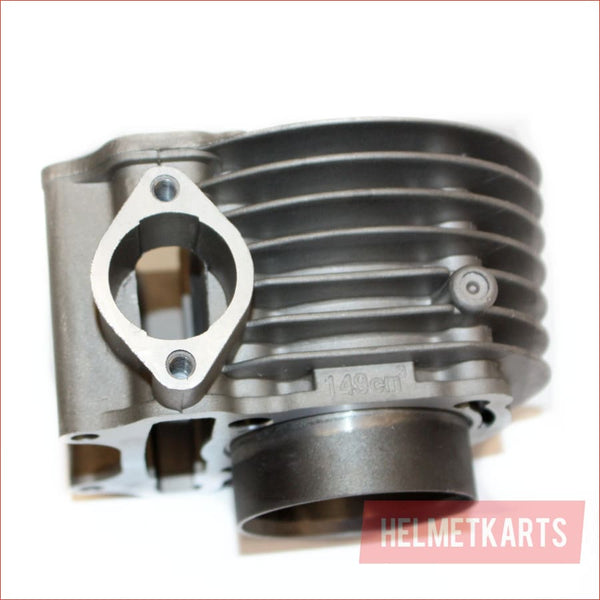

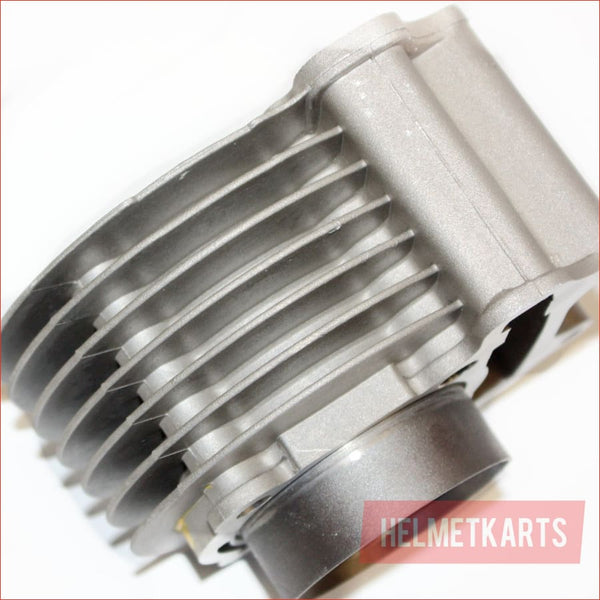

HEIGHT OF THE BARREL (NOT INCLUDE THE SLEEVE) approx 68.80mm
HEIGHT OF THE SLEEVE approx 21.85mm

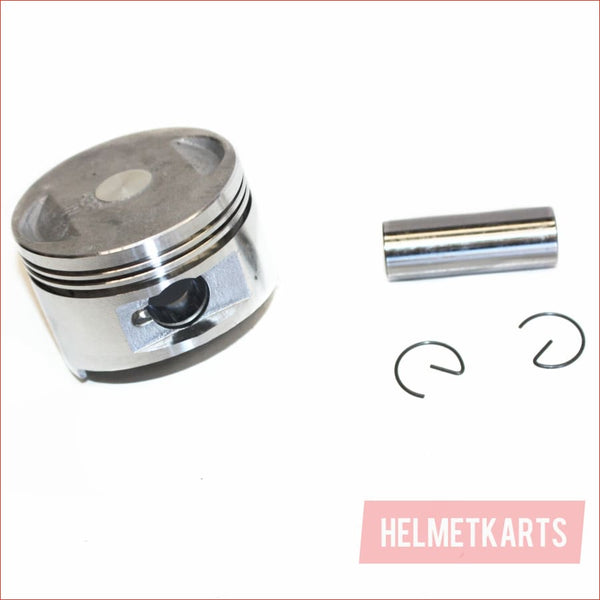

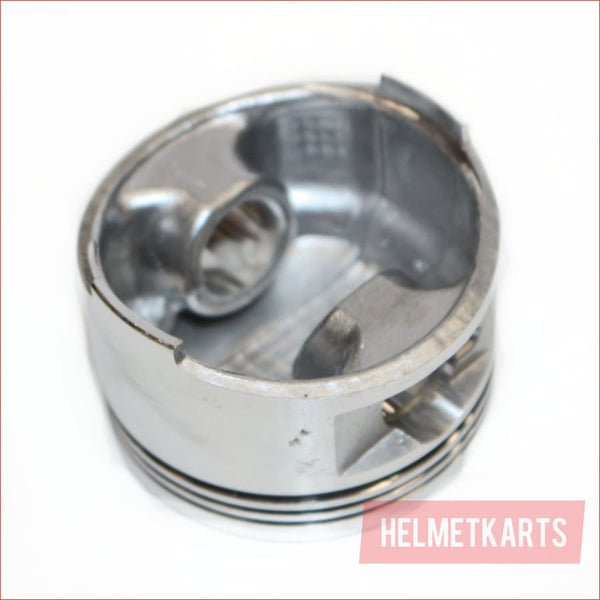

DIAMETER OF PISTON approx 57.30mm
HEIGHT OF PISTON approx 38.36mm
LENGTH OF PISTON PIN approx 42.55mm
DIAMETER OF PISTON PIN approx 14.95mm
